Industrial Network Security

Futureproof Your Industrial Network Security

Implementing secure OT networks requires more than reliable connectivity. Industrial networks require layered security architectures that enforce segmentation, control traffic flows, restrict unauthorized access, and provide centralized visibility to support defense-in-depth across OT environments.

With over 37 years of industrial networks expertise, Moxa has embedded security directly into its solutions. As one of the first companies globally to achieve IEC 62443-4-1 certification for our secure development lifecycle (SDL) and IEC 62443-4-2 certification for a range of our products, Moxa provides secure industrial networking and connectivity solutions that help organizations build resilient OT network infrastructure.

How Moxa Secure Networking Solutions Strengthen OT Network Security

Securing OT networks requires layered protection—from secure device connectivity at the edge to segmentation, access control, traffic monitoring, and centralized network visibility and management across industrial infrastructure. Together, these capabilities form the foundation for protecting industrial networks and maintaining operational reliability.

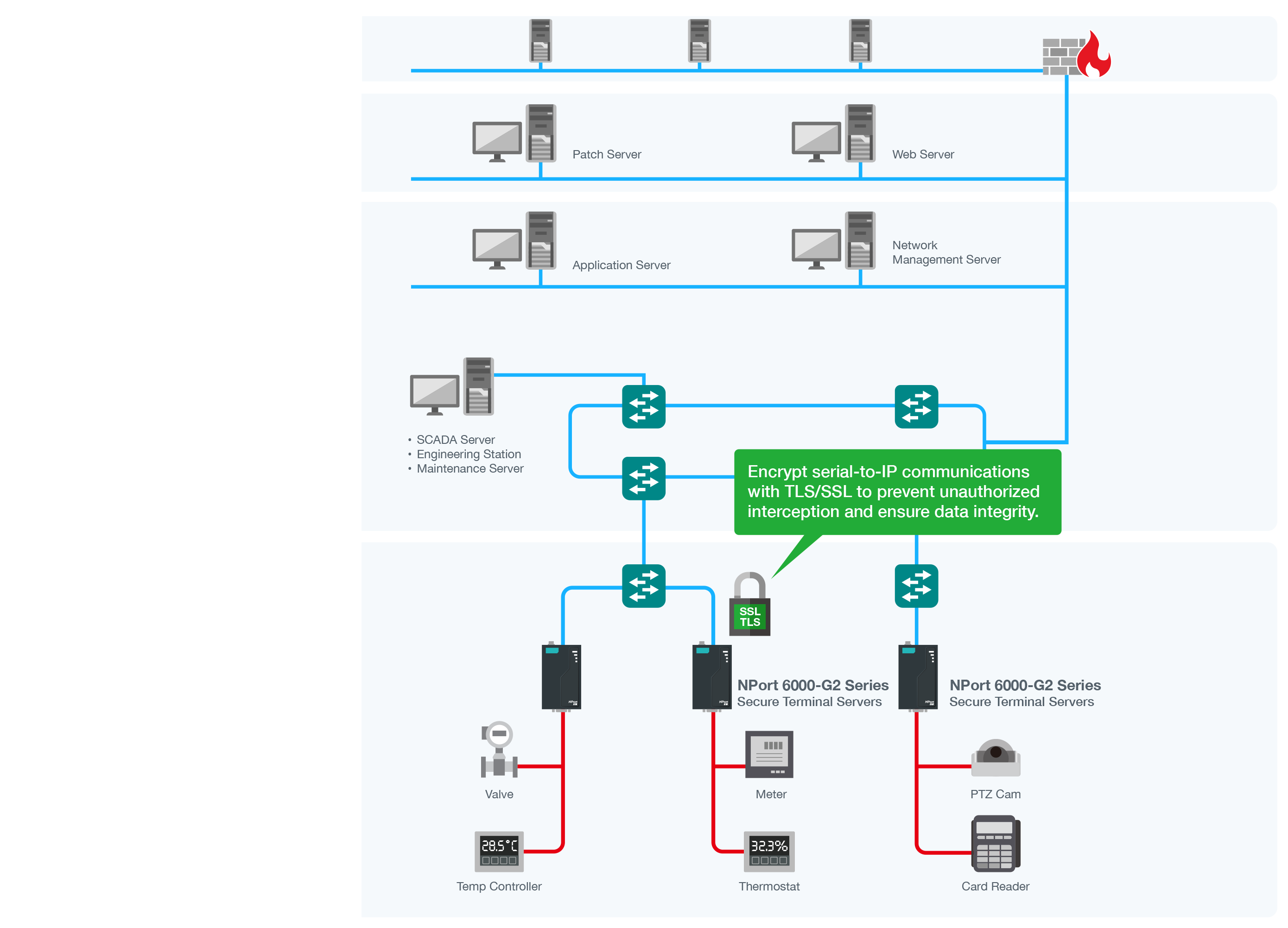

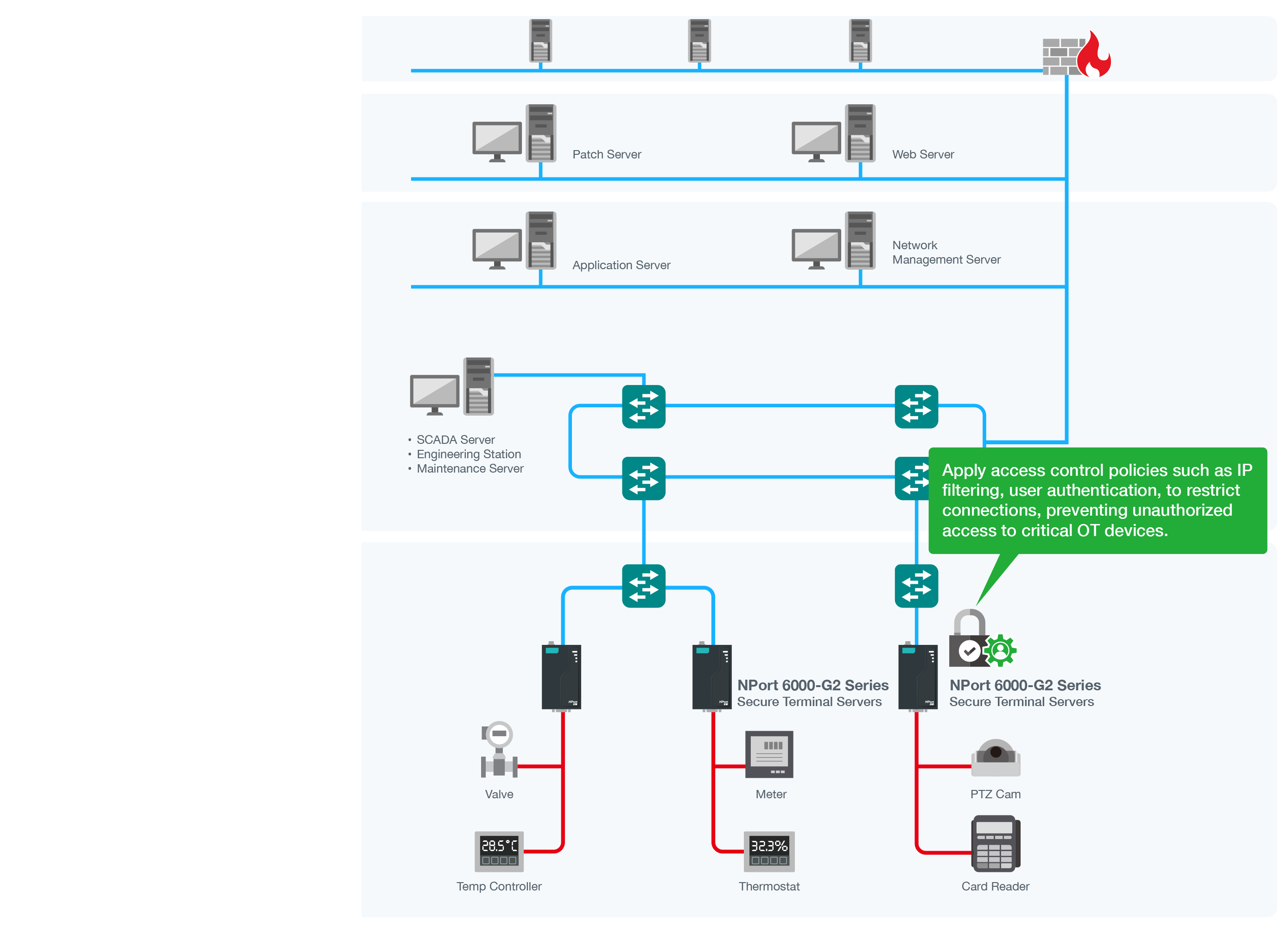

Why is secure edge connectivity important for OT networks?

Edge devices such as serial devices, controllers, and remote I/O often connect legacy equipment to modern IP networks. Without proper protection, these connection points can become entry paths for cyber threats.

With built-in security functions, Moxa secure edge connectivity solutions protect communications and device integrity while connecting edge devices to IP networks.

Key capabilities include:

Encrypted communication protecting legacy protocol

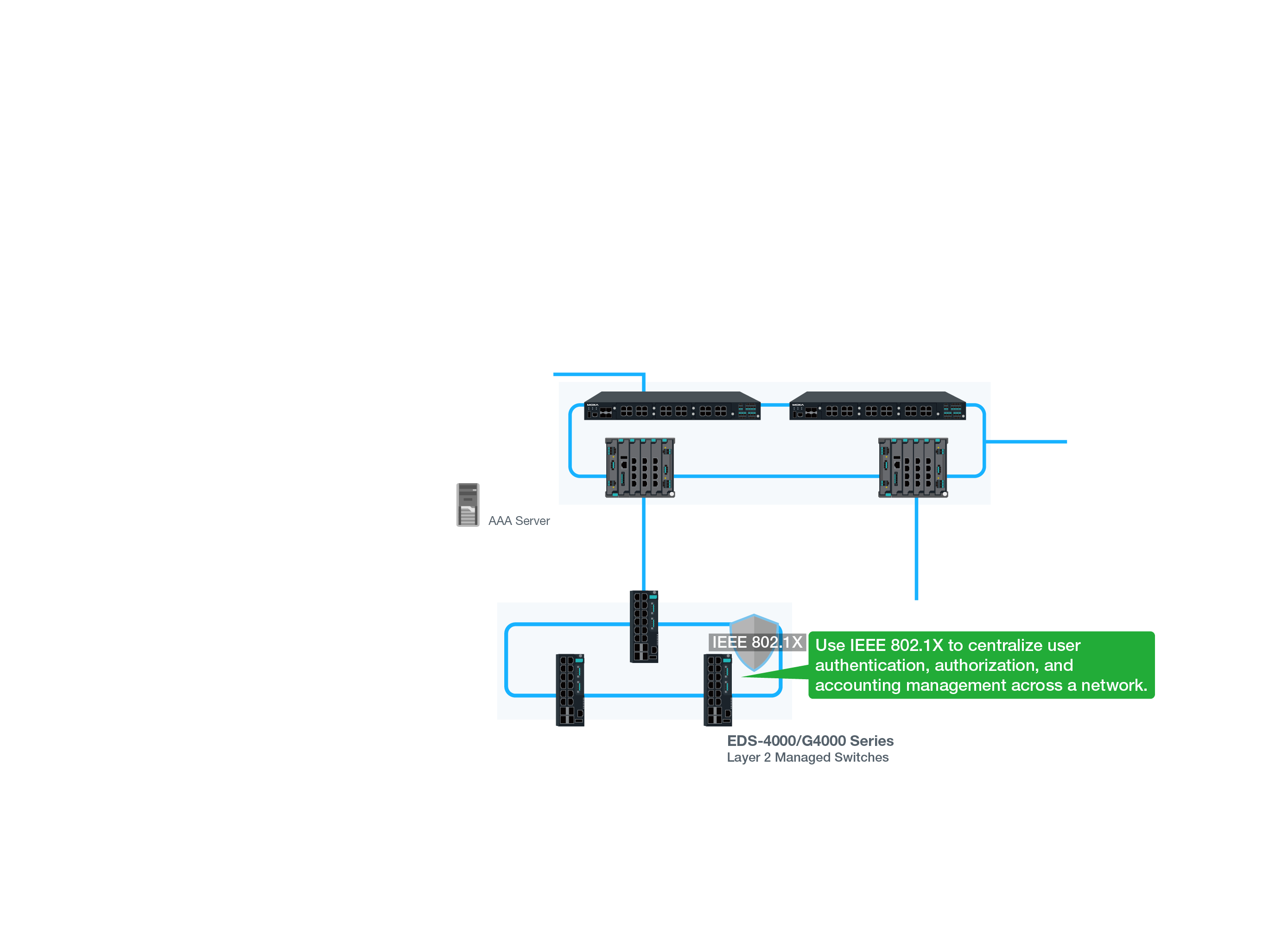

User authentication and role-based authorization
IP whitelisting and network access control
Device integrity checks and secure firmware updates
Hardening mechanisms that disable unnecessary services

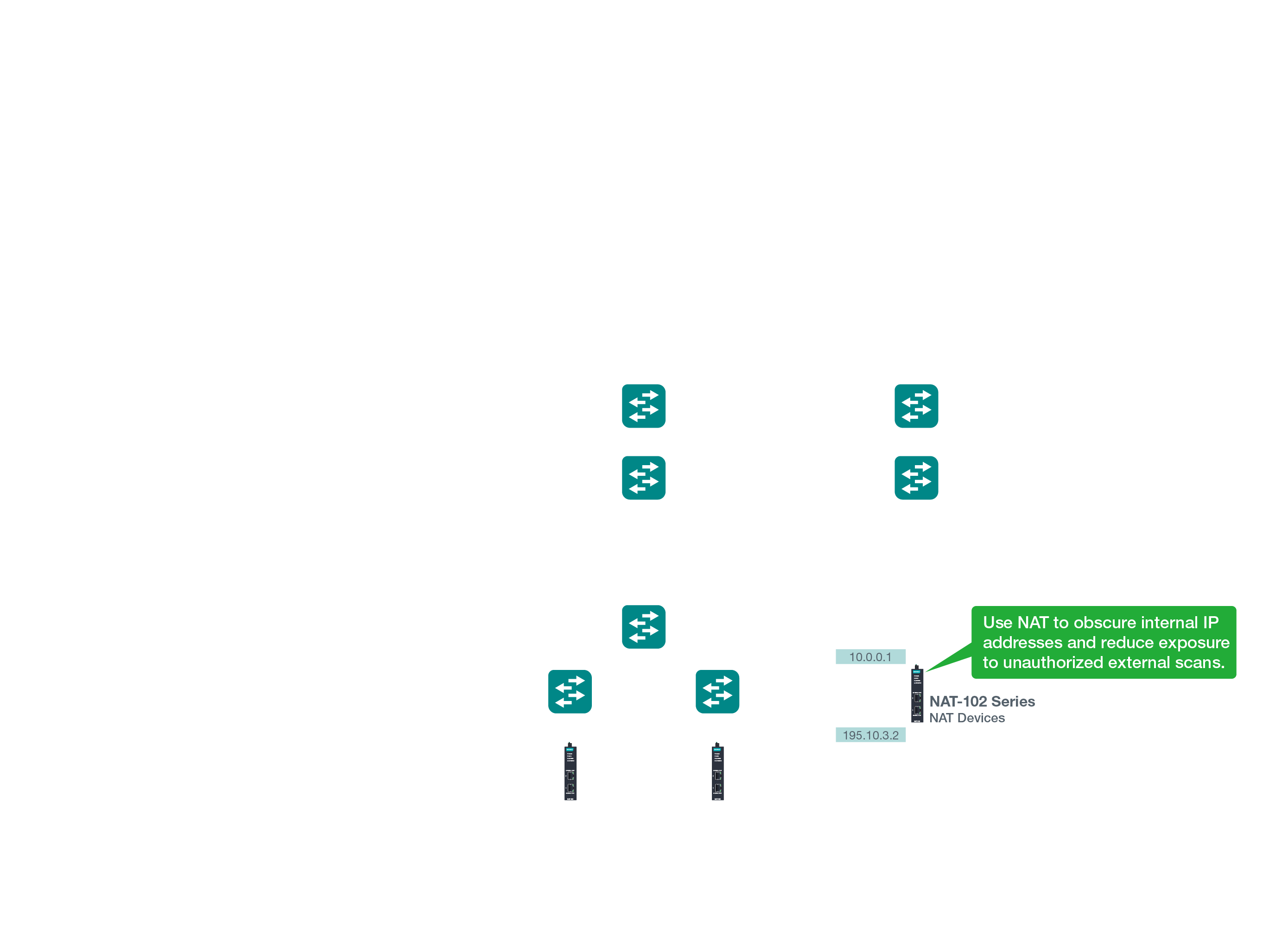

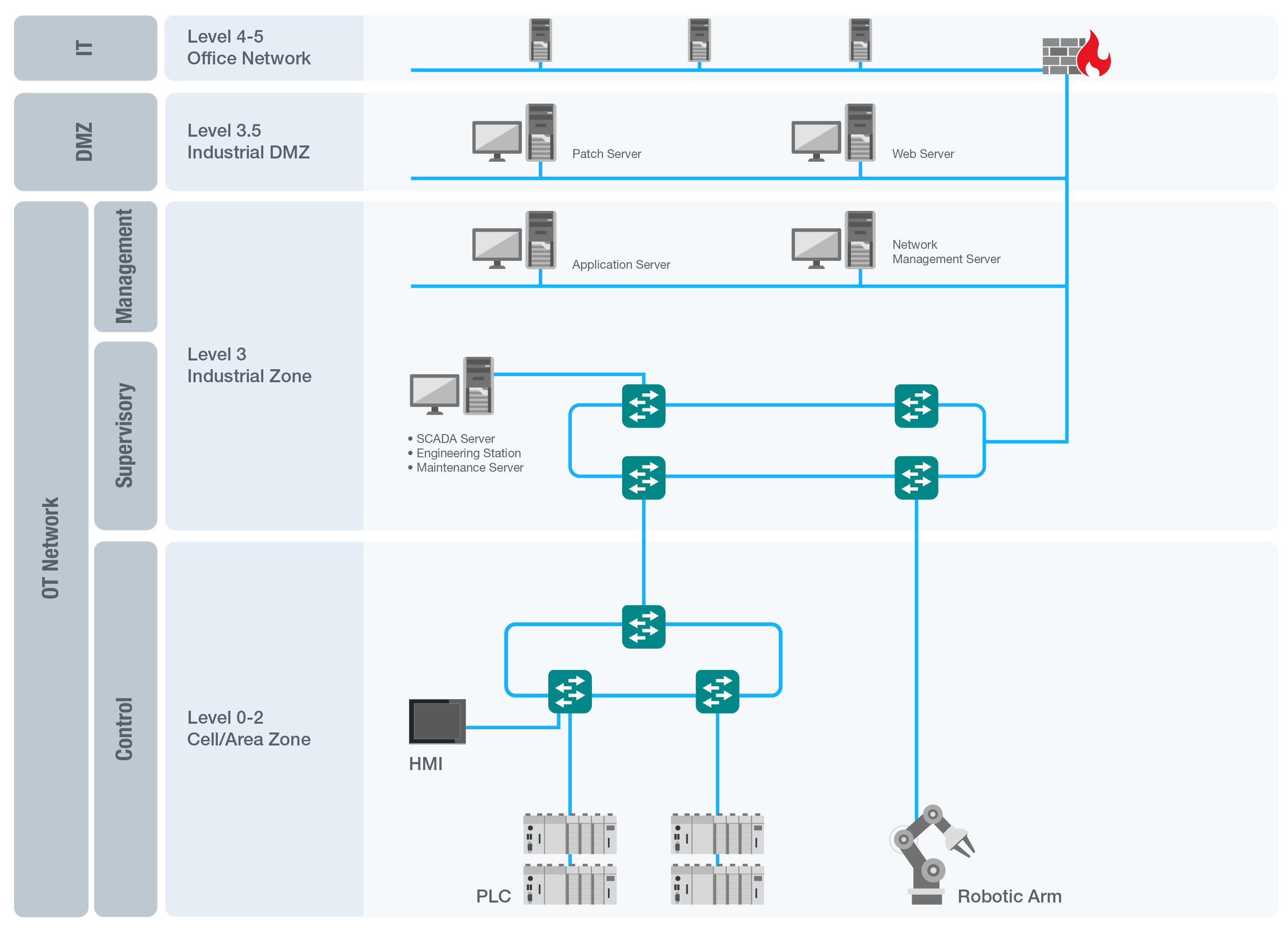

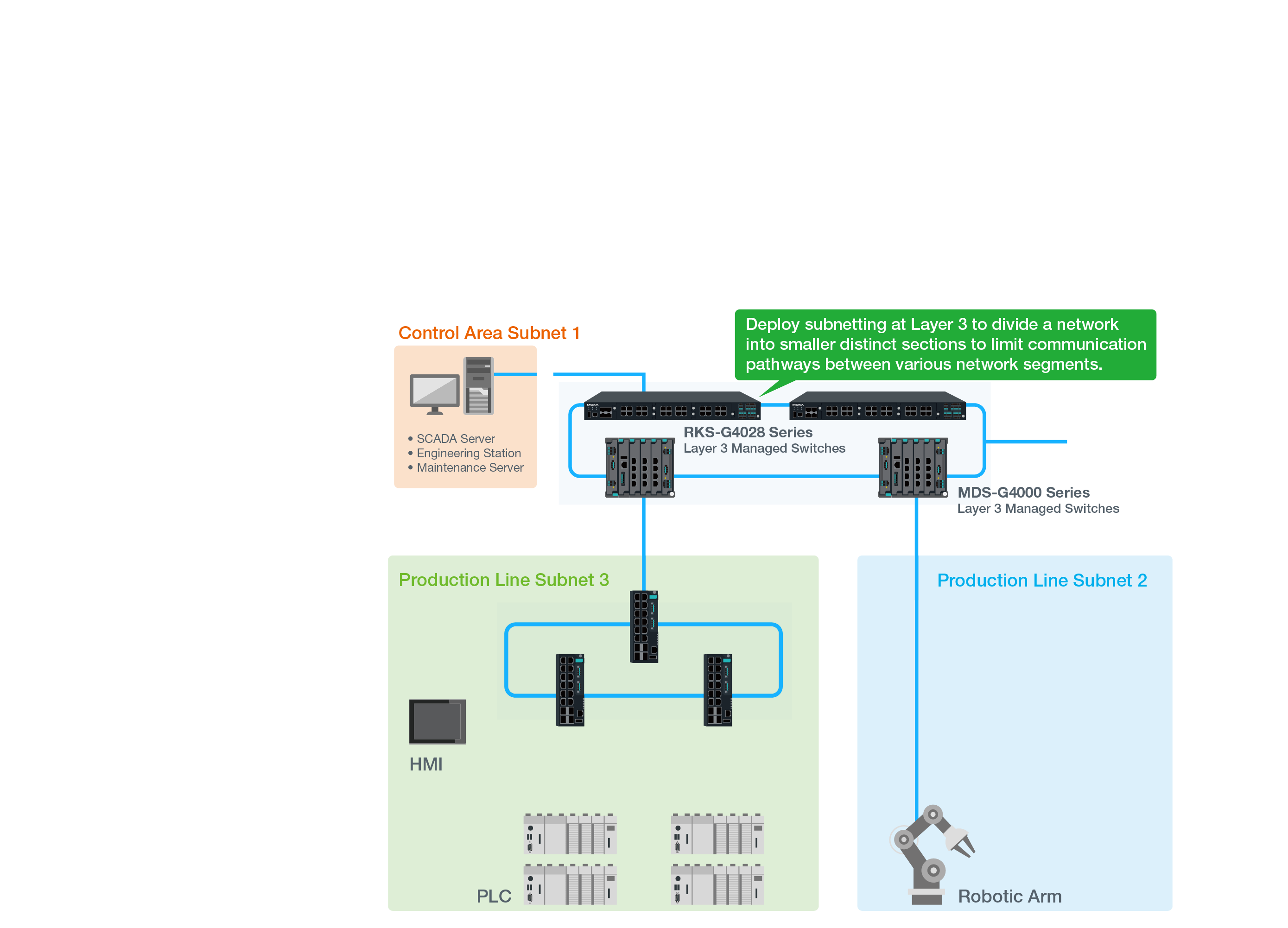

How can network segmentation help protect OT networks?

Segmenting industrial networks is a fundamental strategy for limiting how cyber incidents propagate across operations. Moxa secure switches and routers support segmentation mechanisms that isolate critical systems and control communication between network zones.

Key capabilities include:

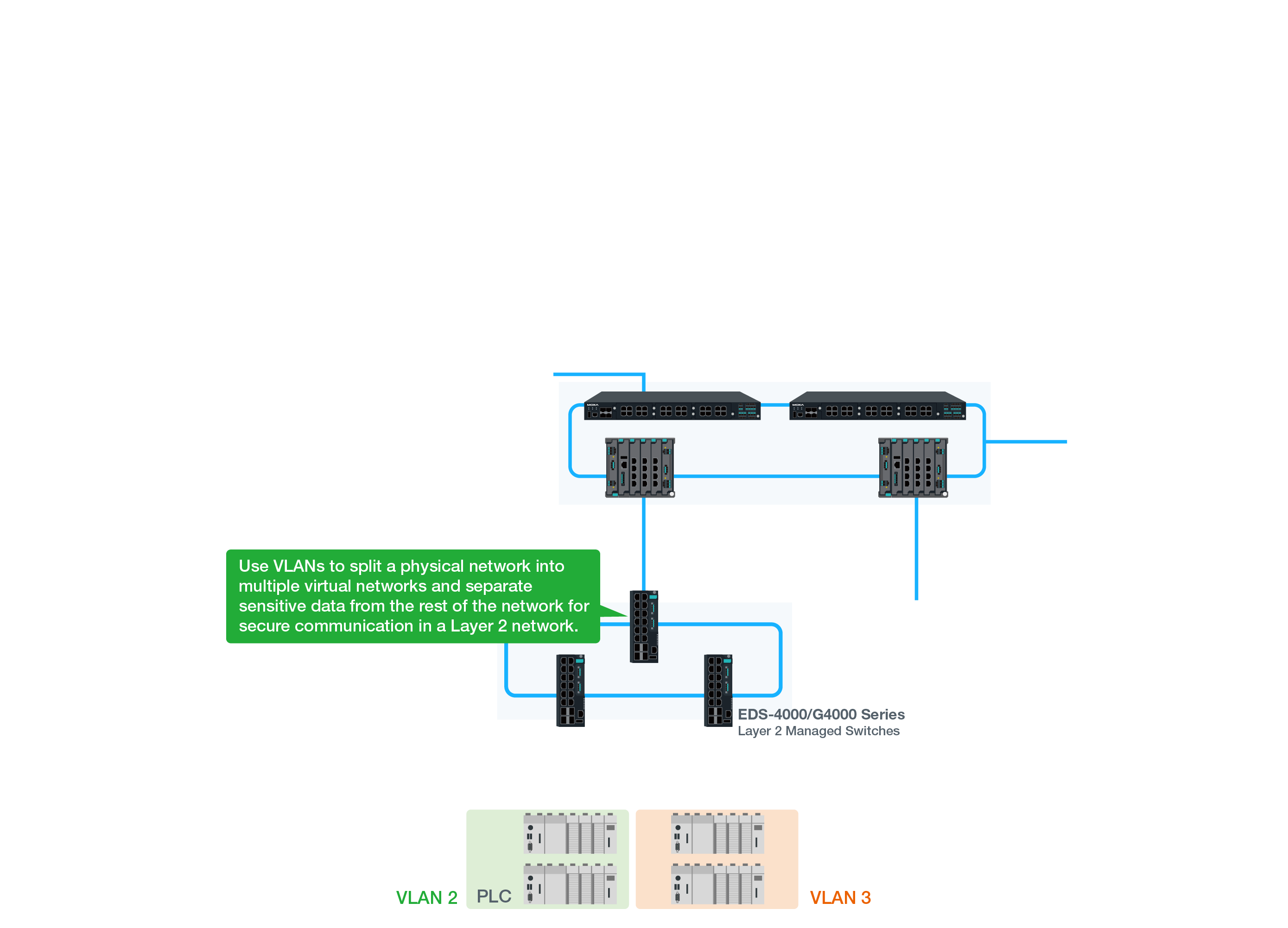

VLAN-based network segmentation

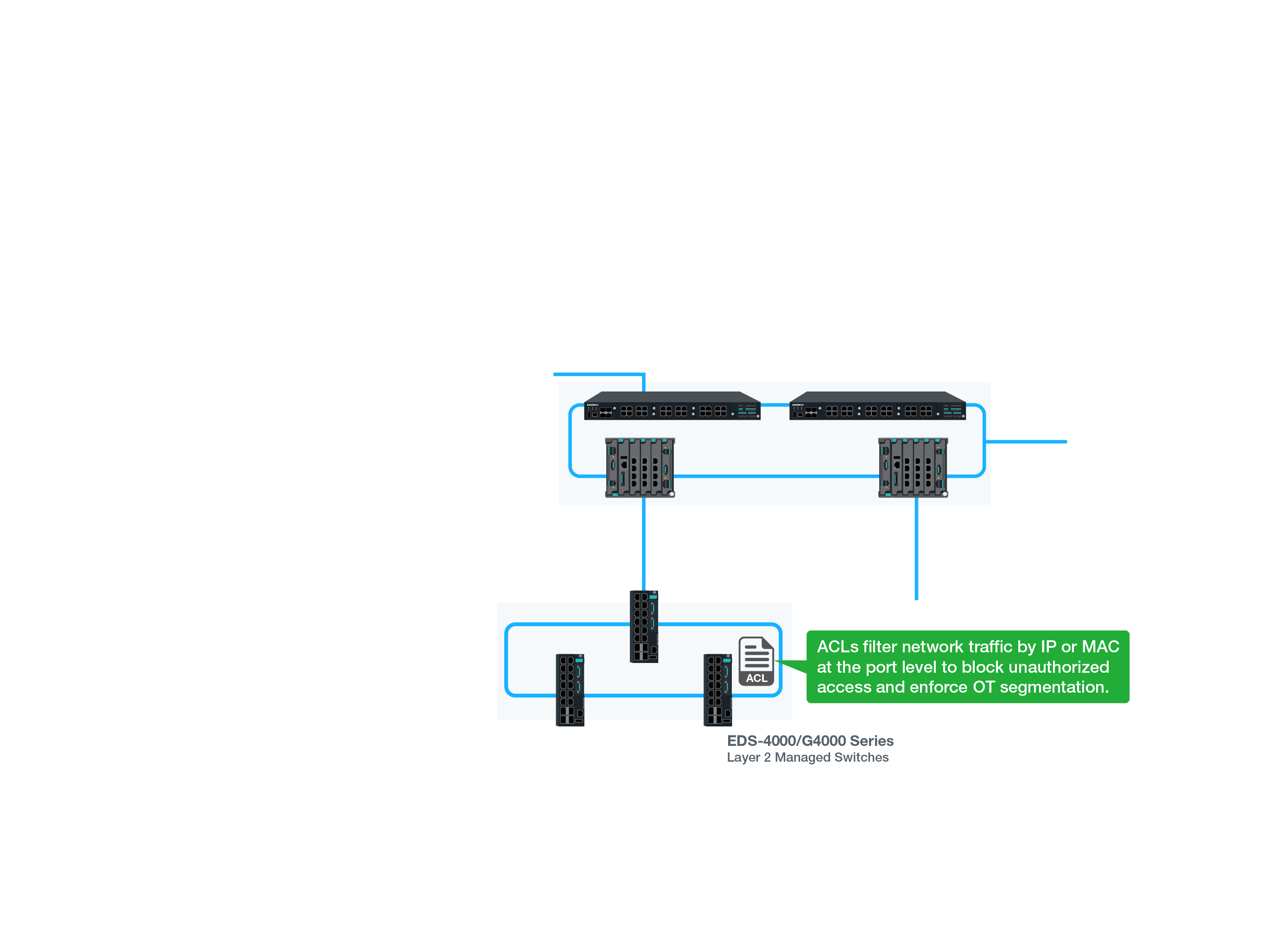

Access control lists (ACL) for traffic filtering

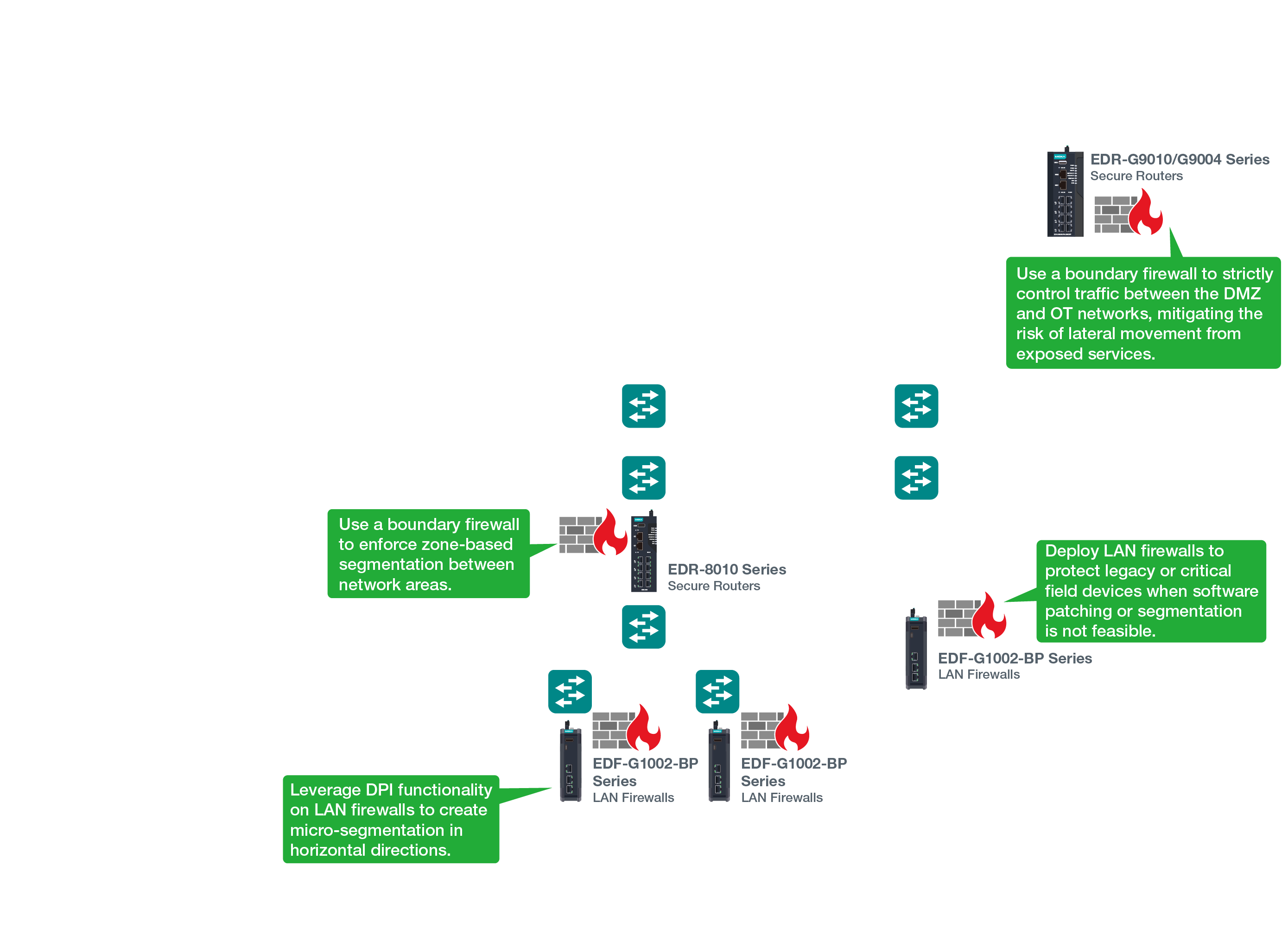

Industrial firewall functions
Secure routing between OT network zones

These mechanisms help contain potential threats and prevent lateral movement across industrial systems.

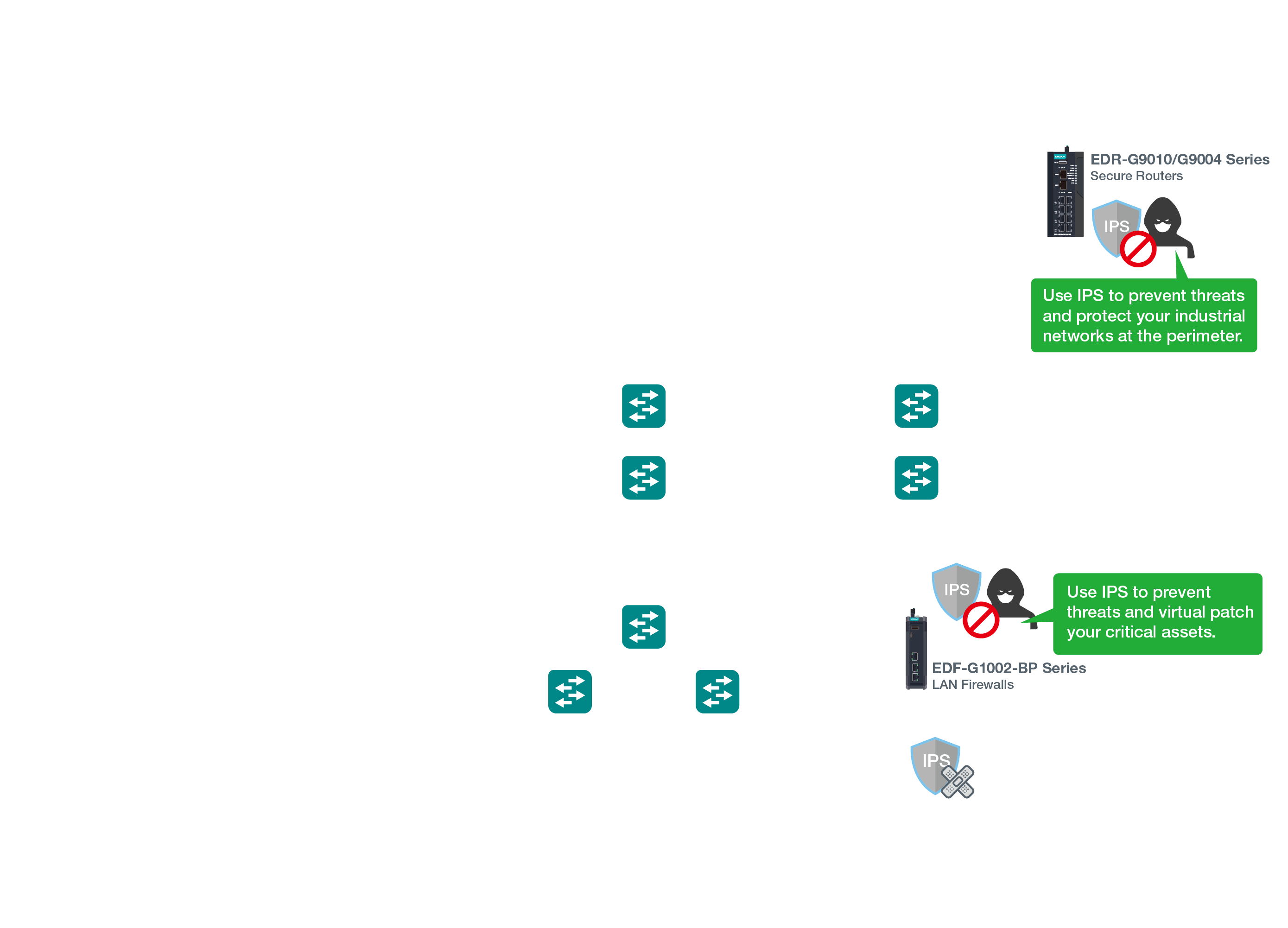

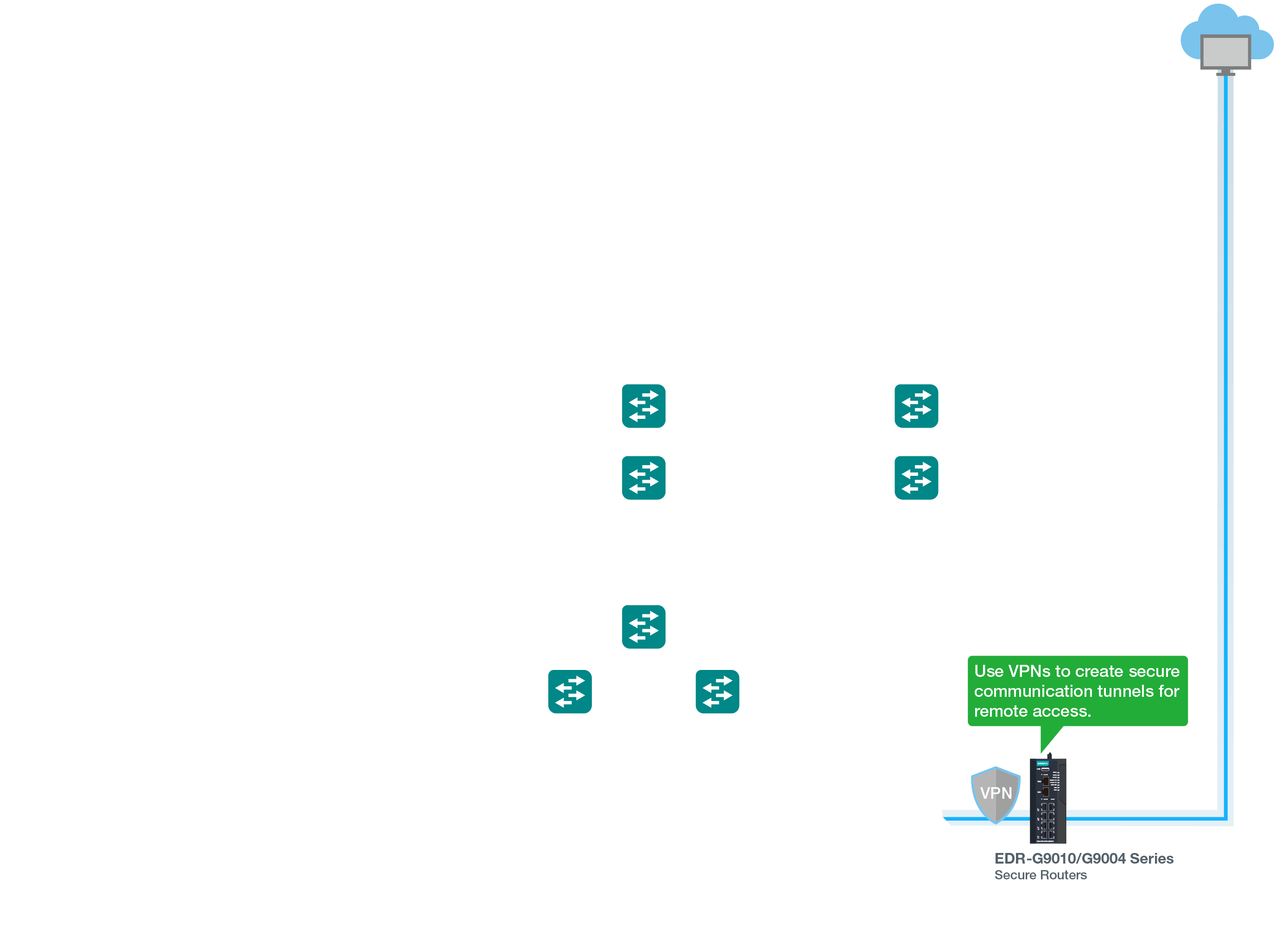

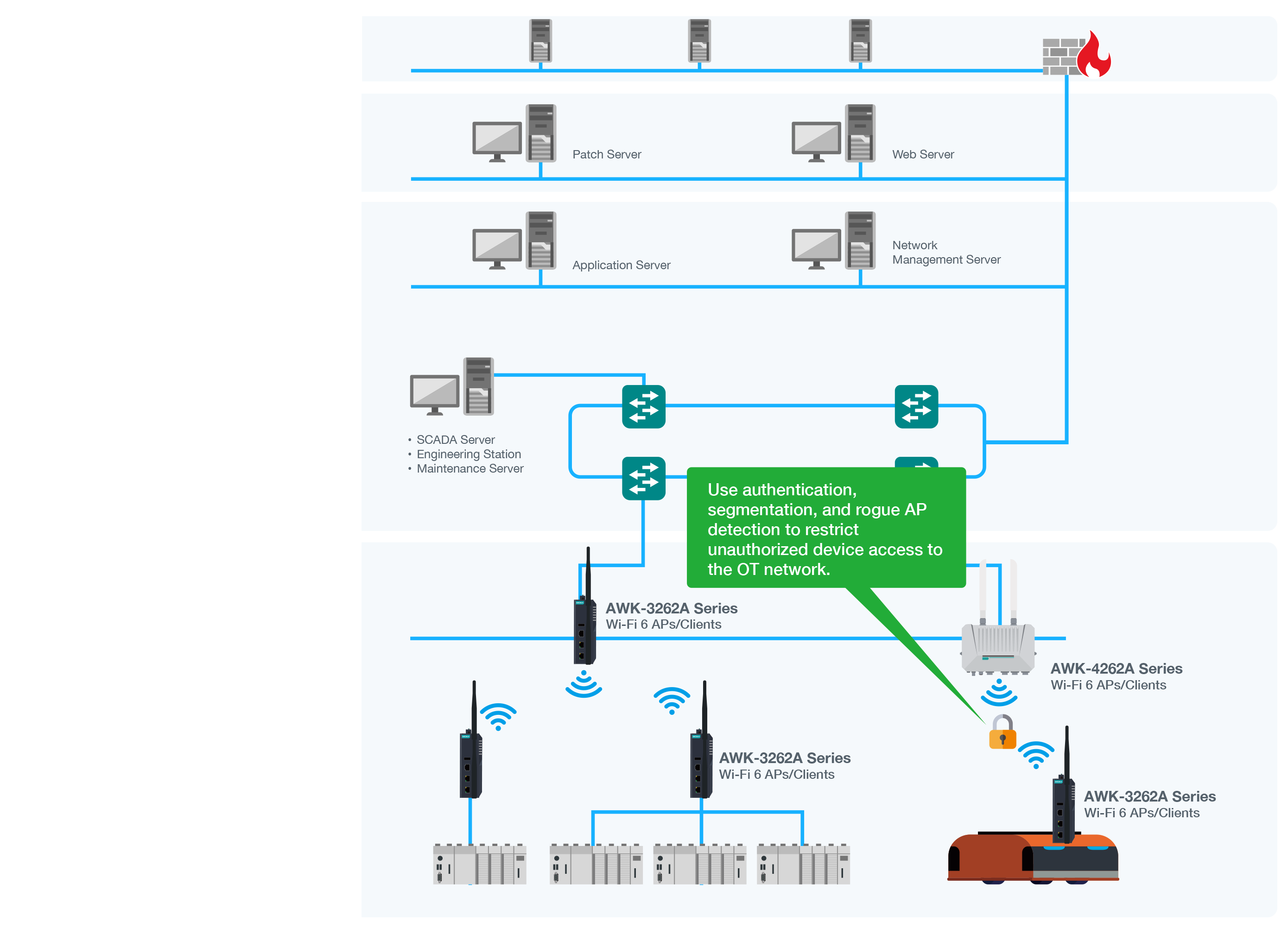

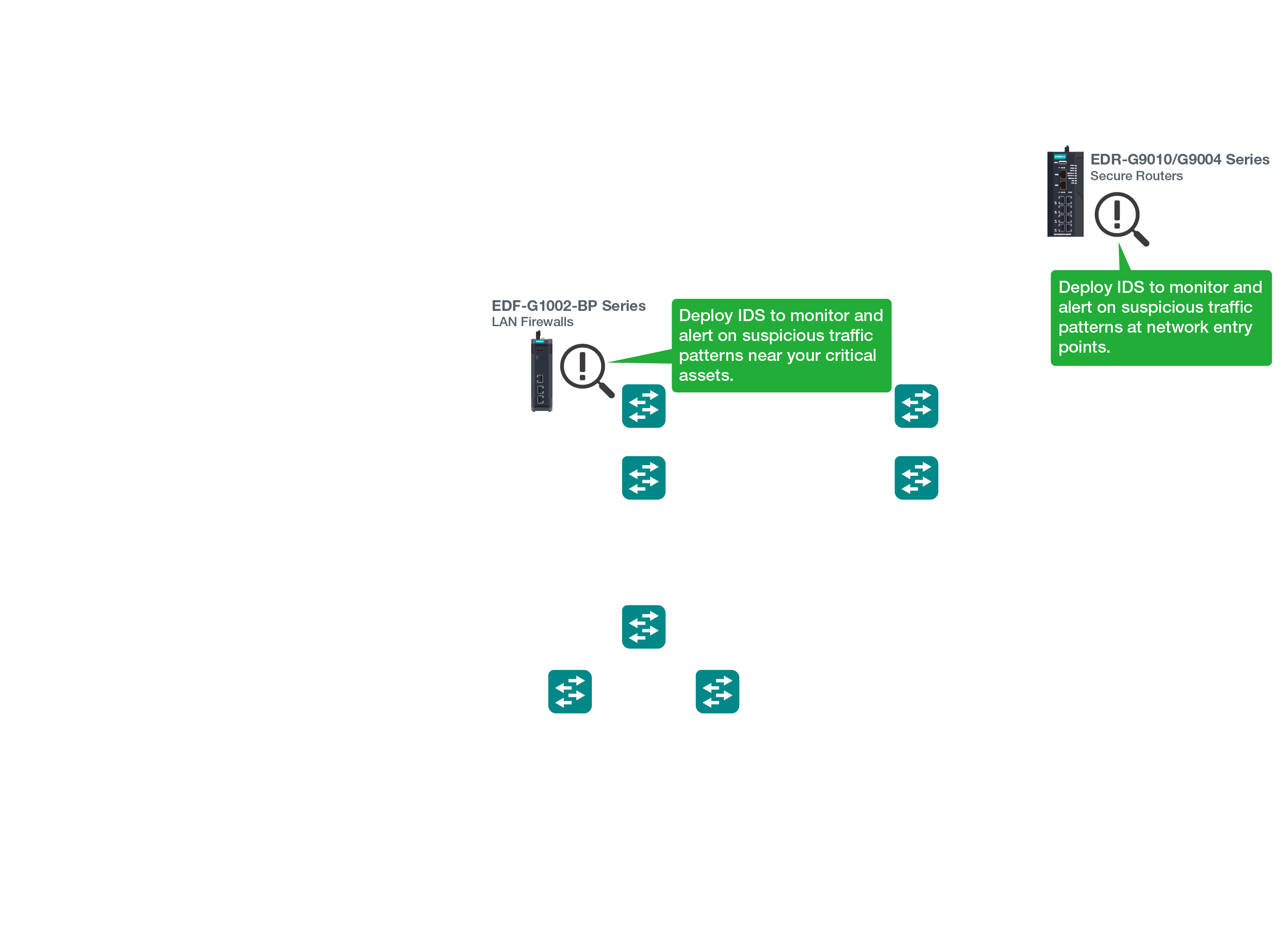

How can organizations secure access to OT networks?

Industrial networks often require remote connectivity for maintenance, monitoring, and integration with enterprise systems. Without proper protection, these connections can introduce significant cybersecurity risks.

Moxa secure networking solutions enable protected connectivity through:

VPN technologies for encrypted remote access
Secure routers and firewalls controlling external connections
Authentication mechanisms that restrict device access
Secure management protocols such as HTTPS and SSH

These capabilities help protect OT network boundaries while enabling secure remote operations.

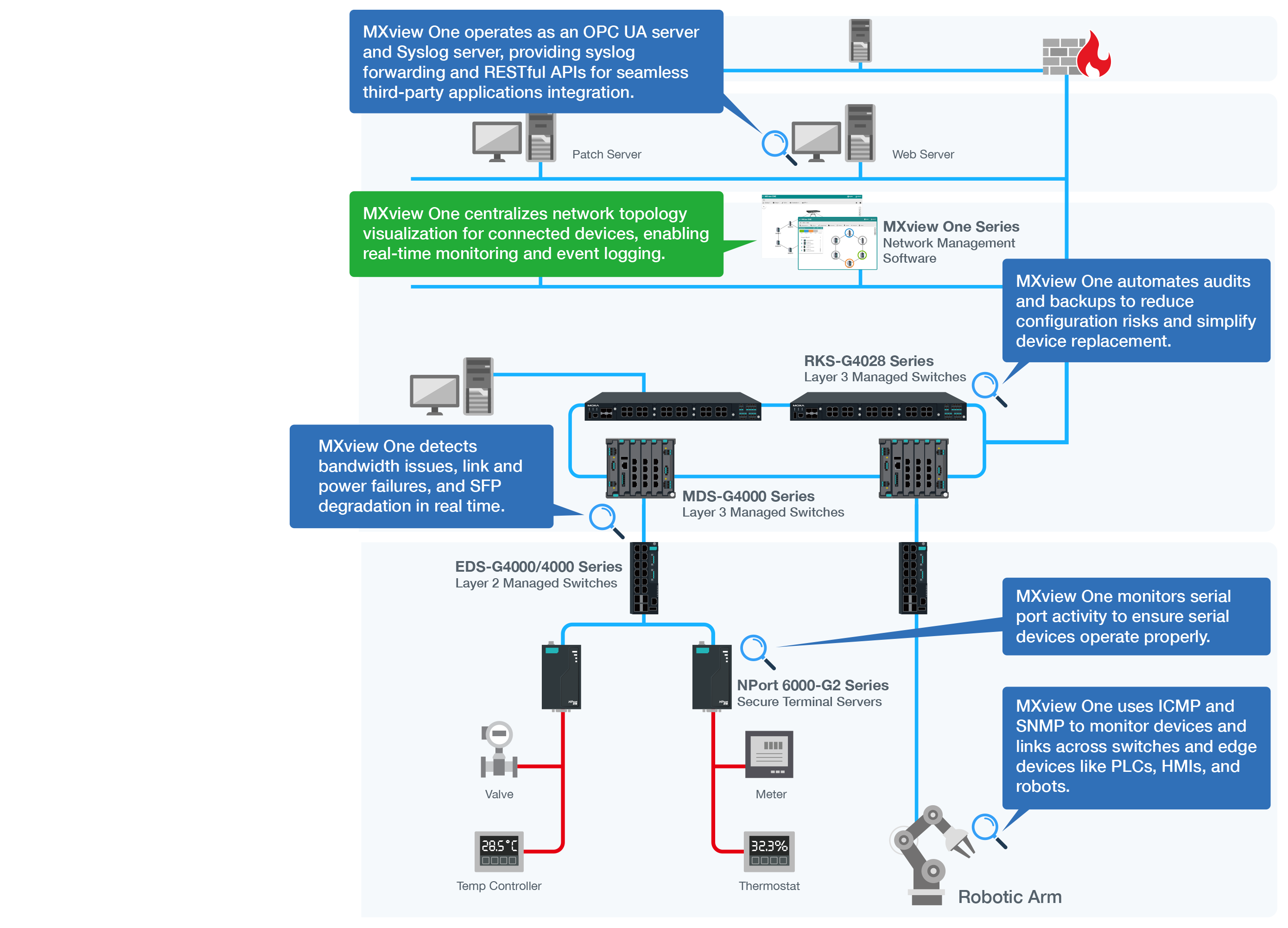

How does full network visibility enable real-time monitoring and control in OT networks?

Full network visibility gives operators real-time insight into devices, connectivity, and traffic , enabling early anomaly detection and faster troubleshooting.

Moxa network management software provides centralized visibility and monitoring to maintain operational awareness and accelerate response to network events. Key capabilities include:

Network topology visualization for a complete view of connected devices
Centralized real-time network monitoring with alerts
Automated security configuration auditing for Moxa devices
Security event logging and monitoring dashboards
Traffic diagnostics for troubleshooting and performance analysis
Centralized security and firewall policy management

Discover the Right Secure Networking Solutions for Your Industrial Networks

Moxa combines industrial networking and cybersecurity expertise to provide layered protection for your industrial networks. Explore how these solutions work.

Moxa’s Secure Networking Solutions

Network Management Software

Secure Routers, Firewalls, and NATs

Secure Managed Switches

Secure Wireless APs/Clients

Secure Edge Connectivity

Find Secure Networking Products That Match Your Demands

Secure Managed Switches
Secure Routers, Firewalls, and NATs
Secure Wireless APs/Clients
Secure Edge Connectivity
Network Management Software

Secure Managed Switches
Ports
Security Features
Redundancy Protocols
Software Management
Industrial Certifications

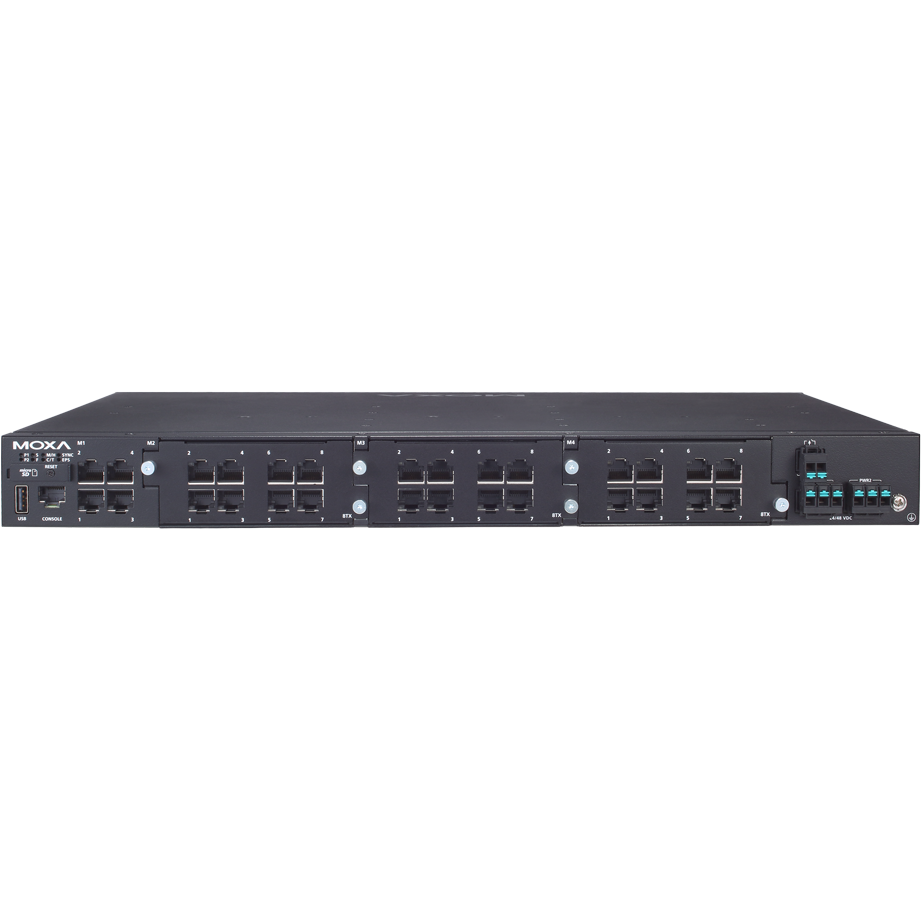

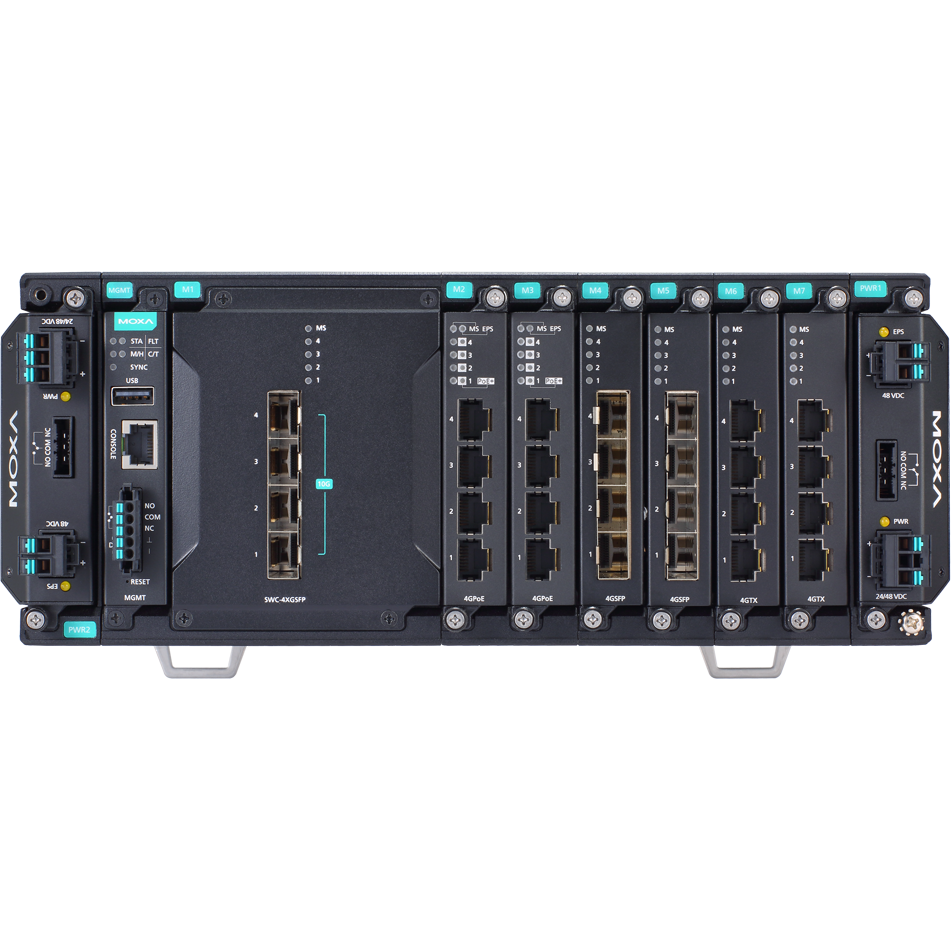

MDS-G4000 Family	RKS-G4028	EDS-4000/G4000	EDS-500E Family
Up to 4 10GbE + 24 GbE	Up to 28 GbE	Up to 6 2.5GbE + 8 GbE	Up to 4 GbE + 24 FE

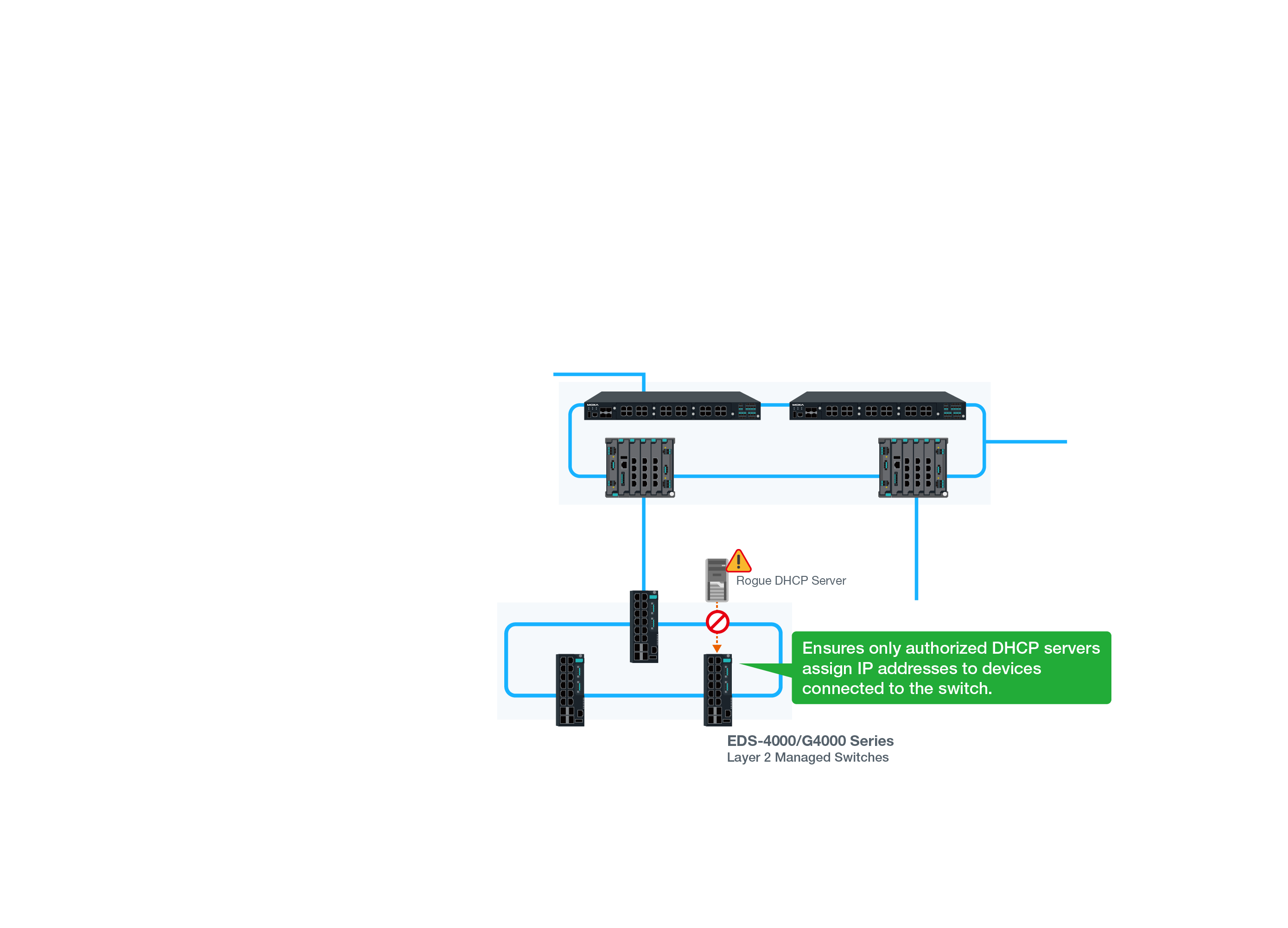

HTTPS, SSL/SSH, ACL, IEEE 802.1X, Port Security, DHCP Snooping, Secure Boot¹	HTTPS, SSL/SSH, ACL, IEEE 802.1X, Port Security, DHCP Snooping, Secure Boot		HTTPS, SSL/SSH, ACL², IEEE 802.1X
Turbo Ring, Turbo Chain, RSTP/STP, MRP, VRRP (L3 Model)		Turbo Ring, Turbo Chain, RSTP/STP, MRP
MXview One
IEC 61850-3, IEEE 1613, EN 50121-4, NEMA TS2, ATEX³, CID2³	IEC 62443-4-2 SL2, IEC 61850-3, IEEE 1613, EN 50121-4, NEMA TS2	IEC 62443-4-2 SL2, IEC 61850-3, IEEE 1613 (Class 1), DNV⁴, ABS⁴, NK⁴, LR⁴, EN 50121-4, NEMA TS2, ATEX⁵, CID2⁵, IECEx⁵	IEC 61850-3, IEEE 1613, DNV⁶, ABS⁶, NK⁶, LR⁶, EN 50121-4⁶, NEMA TS2⁶, ATEX⁶, CID2⁶

1. Only available for -4XGS models.
2. Only available for 18 and 28 port models.
3. Only available for the non-4XGS models.
4. Only available for -LV and PoE models.
5. Only available for -LV models.
6. Only available for 10 and 18 port models.

Secure Routers, Firewalls, and NATs
Ports
NAT
Firewalls
IPS/IDS
DPI
VPN
Routing Throughput (based on RFC 2544)
Redundancy Protocols
Software Management
Industrial Certifications

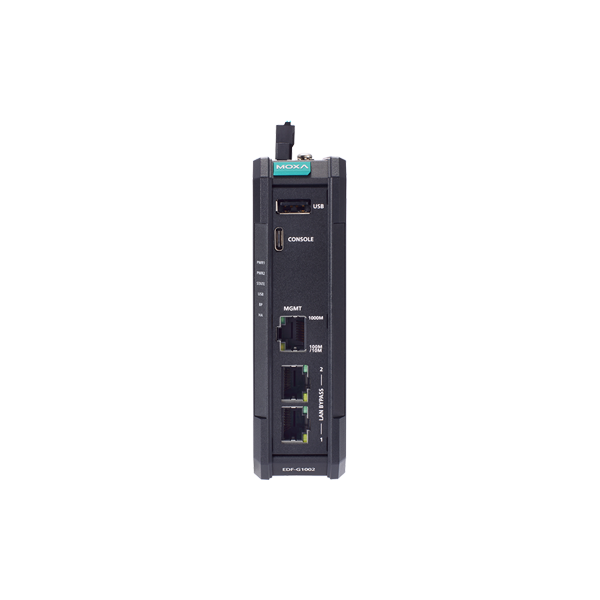

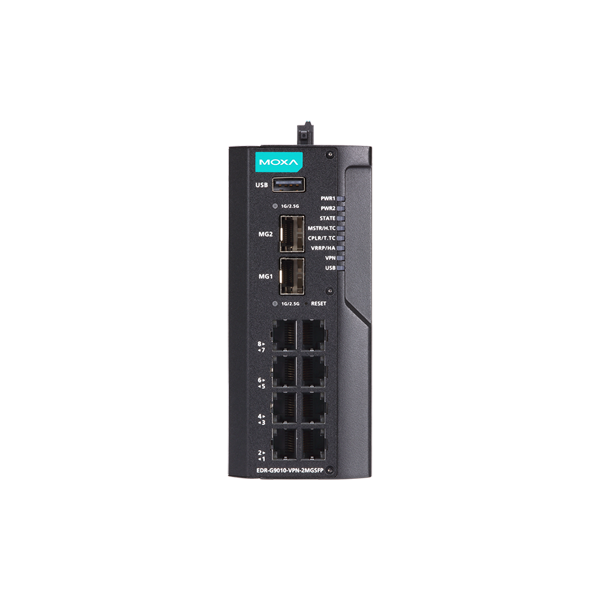

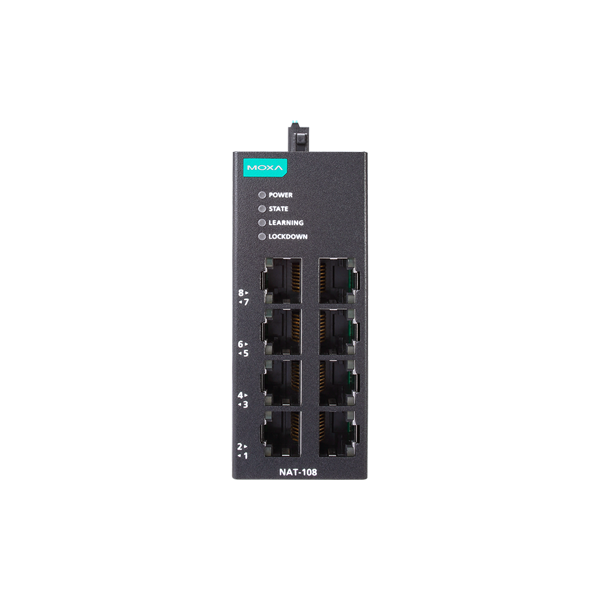

EDF-G1002-BP	EDR-G9010	EDR-G9004	EDR-8010	NAT-102	NAT-108
2 GbE (Gen3 LAN Bypass)	2 2.5GbE + 8 GbE¹	Up to 2 2.5GbE + 2 GbE (1/2 DMZ/WAN ports)	2 GbE + 8 FE¹	2 FE	8 FE
-	1-to-1, N-to-1, NAT loopback, Port forwarding, IP Twins Mapping⁴
DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports				IP address, MAC address (Device Lockdown), Ports
Enabled by default. IPS pattern update functionality requires an additional license.	Requires an additional license			-	-
DNP3, EtherNet/IP, IEC 60870-5-104, IEC 61850 MMS, Modbus TCP, Modbus UDP, Omron FINS, Siemens S7 Comm., Siemens S7 Comm. Plus, OPC UA, MELSEC communication protocol				-	-
-	Up to 250 IPsec VPN tunnels		Up to 50 IPsec VPN tunnels	-	-
-	Max. 350K packets per second / 2 Gbps		Max. 50K packets per second / 500 Mbps	Max. 15K packets per second /100 Mbps
-	VRRP, Turbo Ring, Turbo Chain, RSTP/STP	VRRP	VRRP, Turbo Ring, Turbo Chain, RSTP/STP	-	-
MXview One, MXview Security³, MXsecurity				MXview One	MXview One
NEMA TS2, EN 50121-4, CID2, ATEX, IECEx, DNV	IEC 62443-4-2 SL2, IEEE 1613, IEC 61850-3 Ed. 2.0, ATEX², CID2², EN 50121-4², NEMA TS2², DNV², DNV IEC 61162-460 Edition 3.0², DNV security profile 2², IACS UR E27 Rev.1², IEC 60945²	IEEE 1613, IEC 61850-3 Ed. 2.0, ATEX, CID2, IECEx, EN 50121-4, NEMA TS2, DNV	IEEE 1613, IEC 61850-3 Ed. 2.0, ATEX, CID2, IECEx, EN 50121-4, NEMA TS2, DNV, DNV IEC 61162-460 Edition 3.0, DNV security profile 2, IACS UR E27 Rev.1, IEC 60945	EN 50121-4, NEMA TS2, ATEX, CID2	-

1. Supports user-configurable DMZ/WAN ports.
2. Only available for -LV models.
3. An active MXview One license is required in order to activate the MXview Security add-on license.
4. NAT-108 Series only.

Moxa Solutions
Operation Mode
Wi-Fi Standards
Frequency Band
Data Rates
Wireless Security
Interfaces
Operating Temperature
Protection Class
AeroMesh

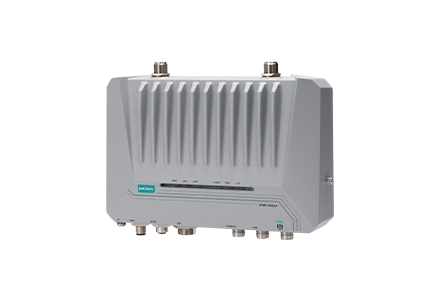

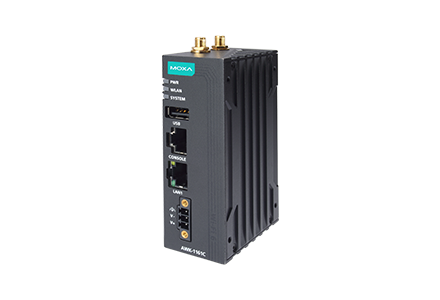

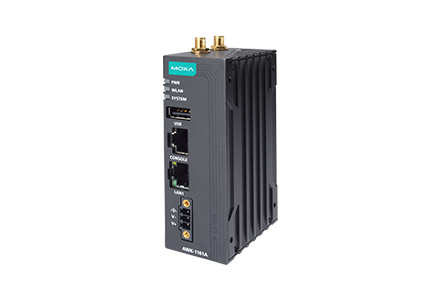

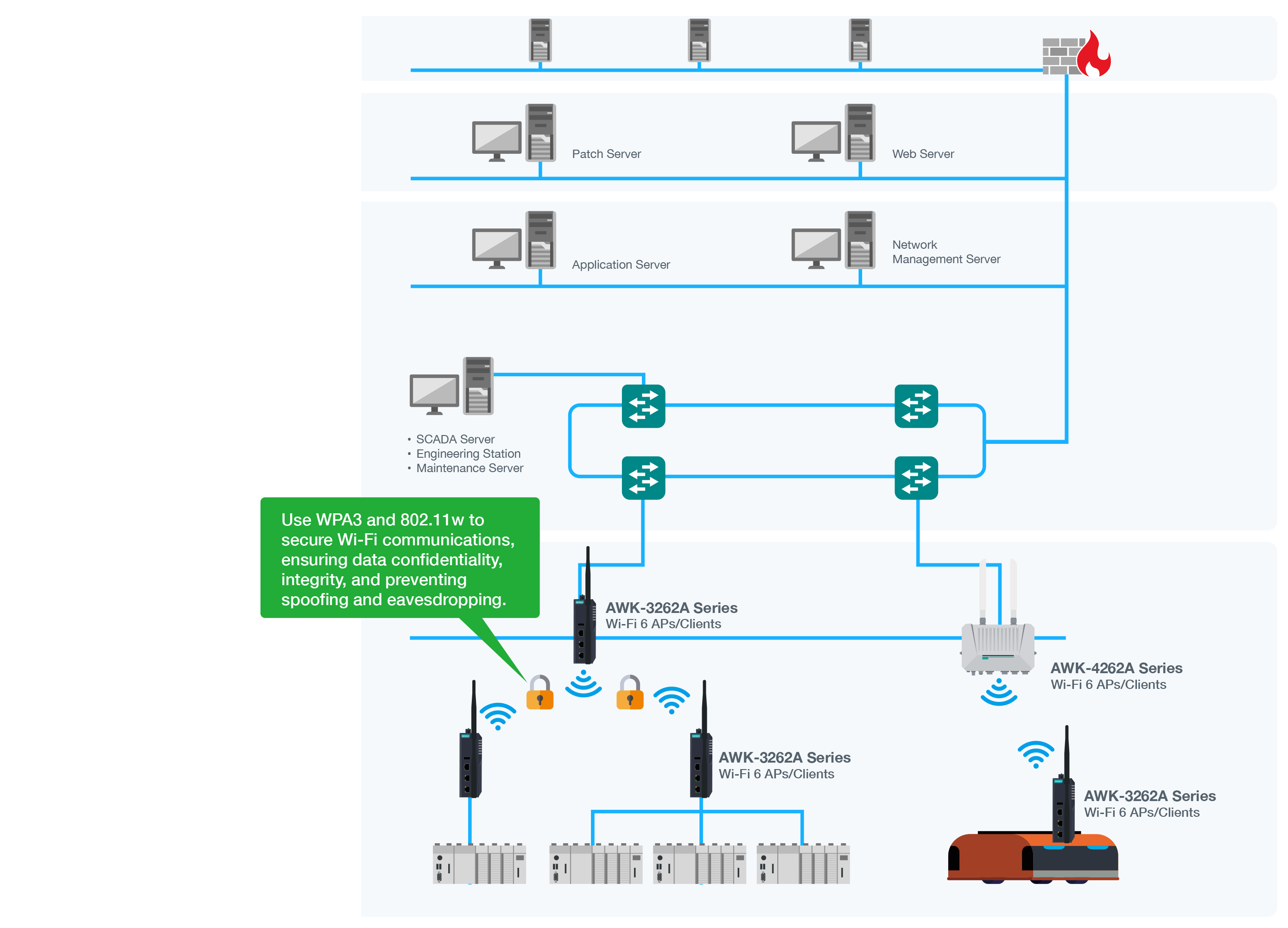

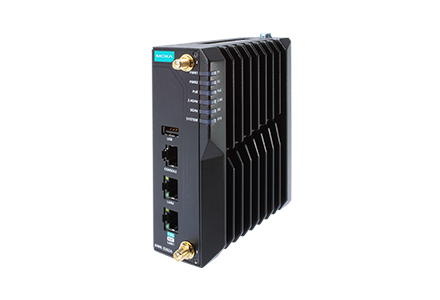

AWK-1161A	AWK-1165A	AWK-1161C	AWK-1165C	AWK-3262A	AWK-4262A
AP		Client		AP/Client
802.11ax
Selectable 2.4 GHz / 5 GHz Dual Band				Concurrent 2.4 GHz + 5 GHz Dual Band
574 Mbps (2.4 GHz) / 1,201 Mbps (5 GHz)				574 Mbps (2.4 GHz) + 1,201 Mbps (5 GHz)
WPA3, Protected Management Frames (802.11w), Wi-Fi ACL (Automatic/Static), Client Isolation, Hide SSID
1 x GbE	5 x GbE	1 x GbE	5 x GbE	1 x GbE + 1 x 2.5GbE (PoE)
-25 to 60°C / -40 to 75°C (-T models)					-40 to 75°C
IP30					IP68

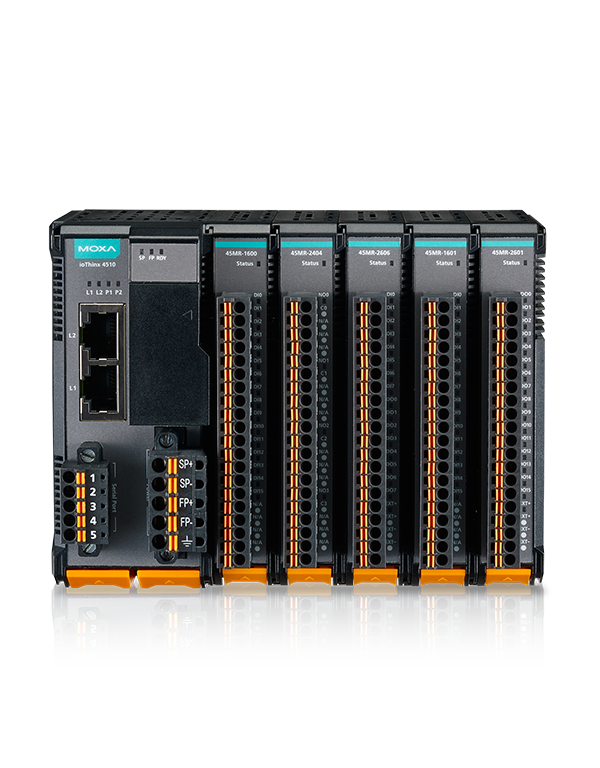

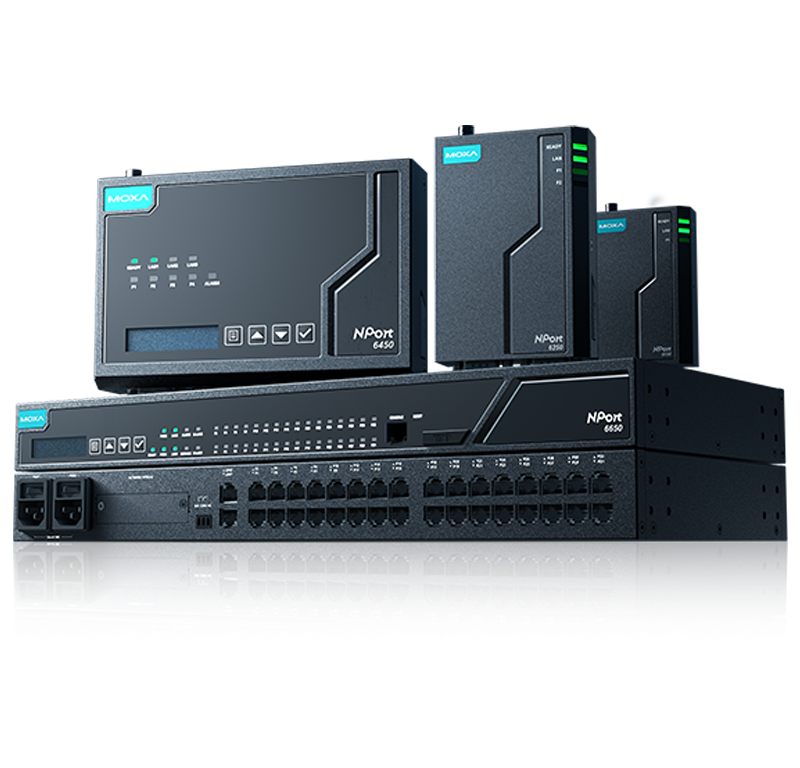

Key Features	NPort 6100-G2/6200-G2/6400-G2/6600-G2 Series Secure Terminal Servers	MGate MB3000-G2 Series Modbus Gateways	ioThinx 4510 Series Advanced Modular Remote I/Os
Embedded Security Functions for Secure Deployment
User Authentication & Authorization	Password protection (length, character enforcement, update policy) Authentication servers (RACIUS/TACACS+) Role-Based Access Control (RBAC)	Password protection (length, character enforcement, update policy) Authentication servers (RACIUS/TACACS+) Role-based Access Control (RBAC)	Password protection (length, character enforcement)
Device Integrity	Secure Boot check software authenticity before bootup Check CRC code before update the device		Check CRC code before update the device
Device Least Functionality	Security Hardening Guide Unused services can be disabled Telnet console default disabled	Security Hardening Guide Unused services can be disabled	Security Hardening Guide Unused services can be disabled
Communication Integrity	Authentication & Encryption for both management & serial data stream HTTPS (TLS 1.3 embedded with self-signed certificate, also supports public certificate import) SSHv2/SNMPv3 ECC 521 or RSA-4096	Authentication & Encryption for management interface HTTPS (TLS 1.2 embedded with self-signed certificate, also supports public certificate import) SNMPv3 ECC 521 or RSA-4096	HTTPS (TLS 1.2 embedded with self-signed certificate, and can be exported) SNMPv3
Network Access Control	Accessible IP List		Accessible IP List Access Control List (ACL)
Securing Your Devices in Daily Maintenance
Configuration Management	GUI type of Device Search Utility CLI type of MCC tools		GUI type of MXconfig CLI type of MCC tools
Device Management	Syslog with RFC 3164 format with ISO8601 timestamp Local syslog storage & remote syslog with failover Manageable via MXview One network management software	Syslog with RFC 3164 format with ISO8601 timestamp Local syslog storage Manageable via MXview One network management software	Syslog Manageable via MXview One network management software
Vulnerability Management	Dedicated Cybersecurity Response Team for handling vulnerability Perform Nessus Scan

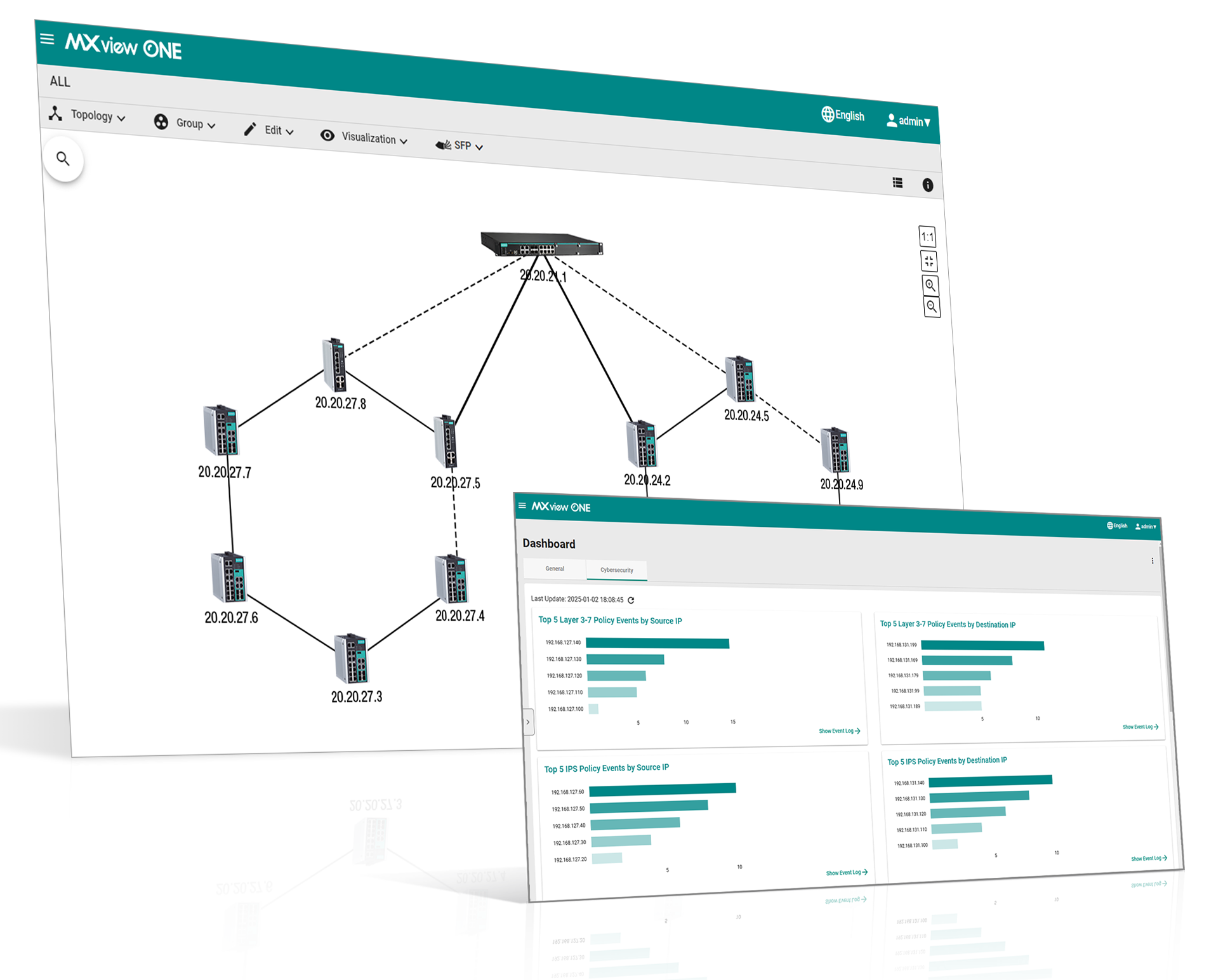

MXview One Series: Next-generation Industrial Network Management Software

You can easily manage and maintain our secure routers, firewalls, and managed switches using one platform. Our MXview One Series simplifies device security management, allowing you to easily adjust security levels and receive alerts when abnormal activity occurs. Additionally, our software includes a network security add-on that enables centralized firewall policy management and provides a dashboard for at-a-glance network security monitoring.

Network Risks Mitigated, Operations Empowered

Futureproof Your Industrial Network Security

How Moxa Secure Networking Solutions Strengthen OT Network Security

Why is secure edge connectivity important for OT networks?

Key capabilities include:

How can network segmentation help protect OT networks?

Key capabilities include:

How can organizations secure access to OT networks?

How does full network visibility enable real-time monitoring and control in OT networks?

Discover the Right Secure Networking Solutions for Your Industrial Networks

Moxa’s Secure Networking Solutions

Find Secure Networking Products That Match Your Demands

MDS-G4000 Family

RKS-G4028

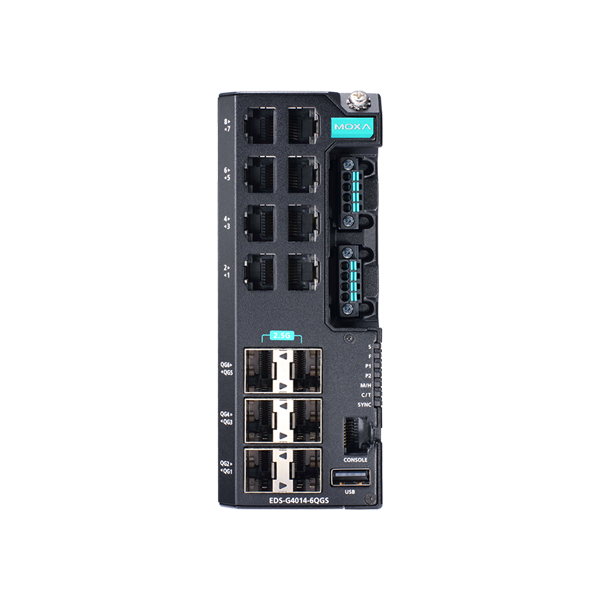

EDS-4000/G4000

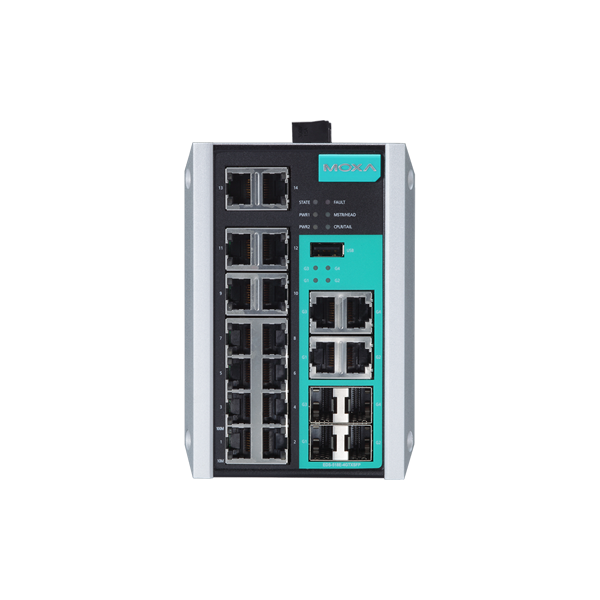

EDS-500E Family

EDF-G1002-BP

EDR-G9010

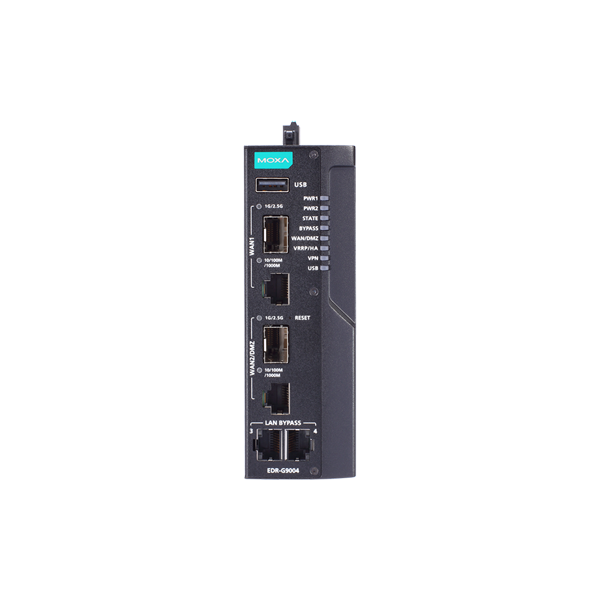

EDR-G9004

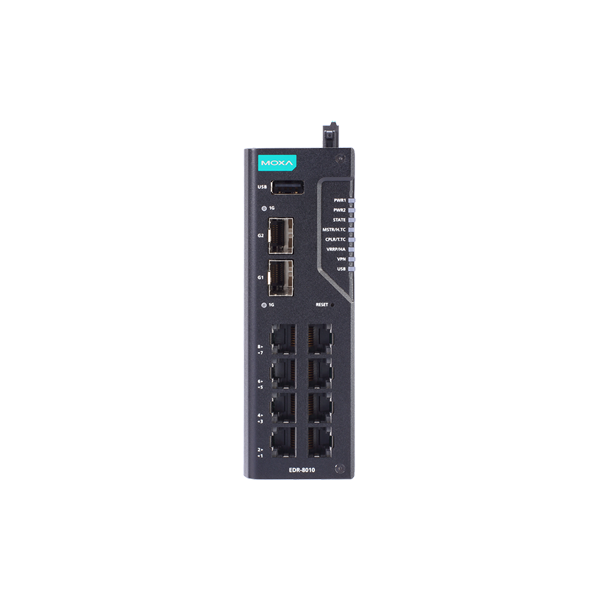

EDR-8010

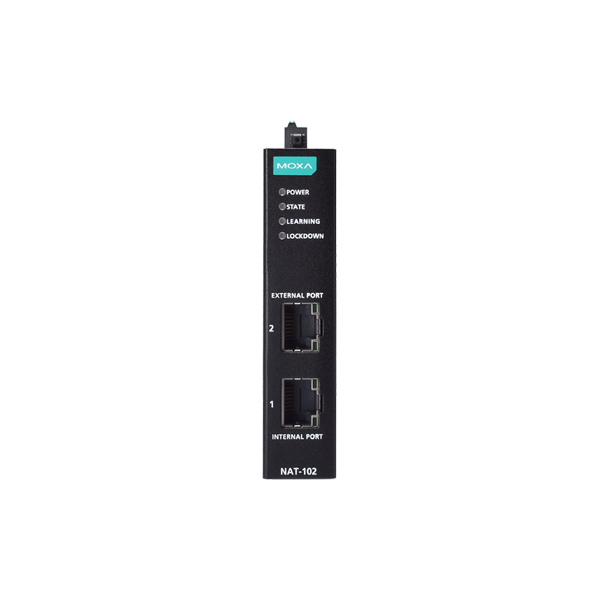

NAT-102

NAT-108

AWK-1161A

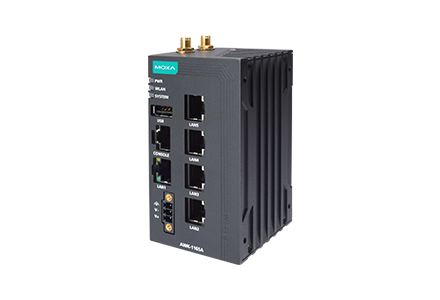

AWK-1165A

AWK-1161C

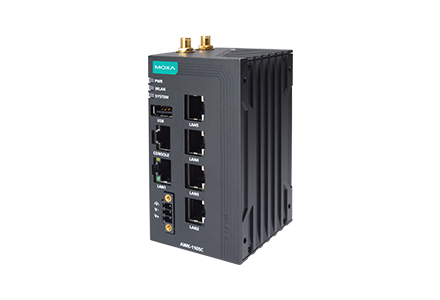

AWK-1165C

AWK-3262A

AWK-4262A

NPort 6100-G2/6200-G2/6400-G2/6600-G2 Series Secure Terminal Servers

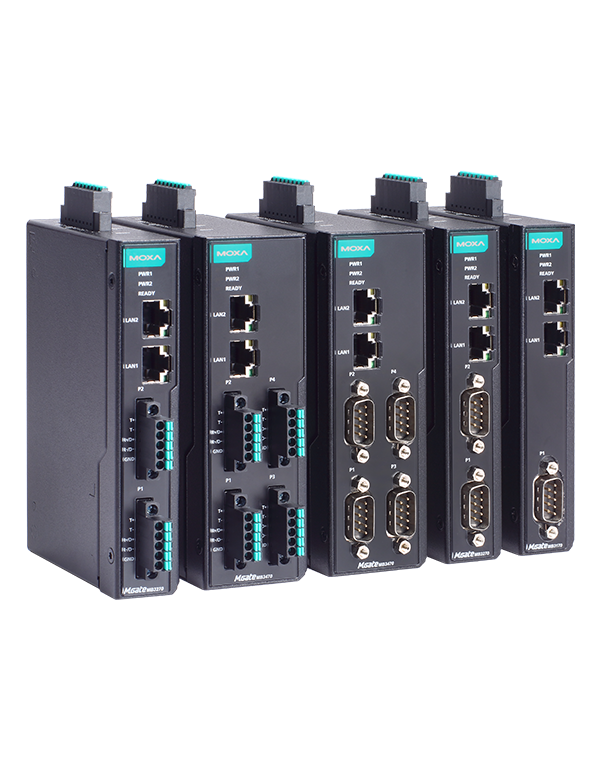

MGate MB3000-G2 Series Modbus Gateways
